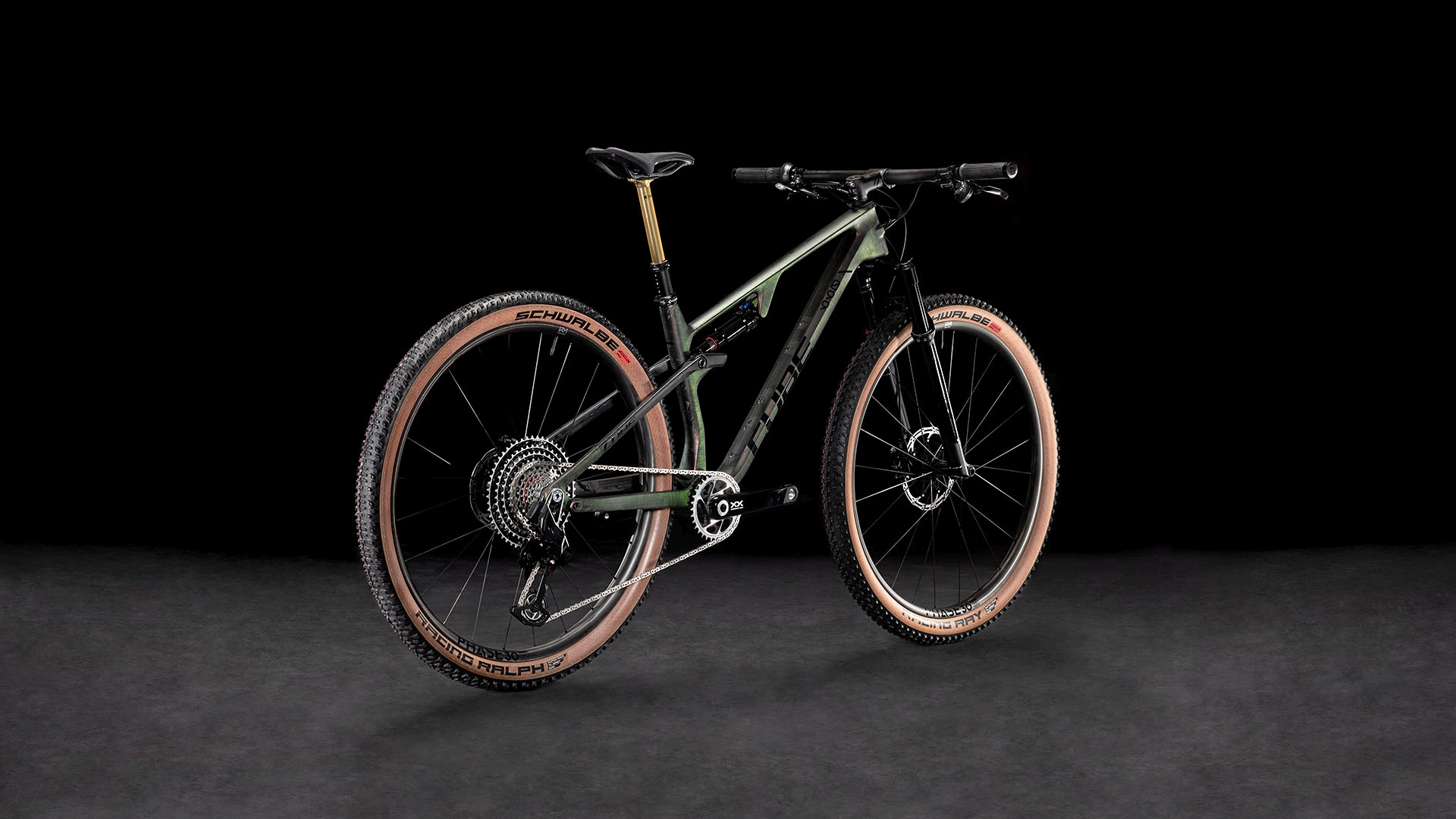

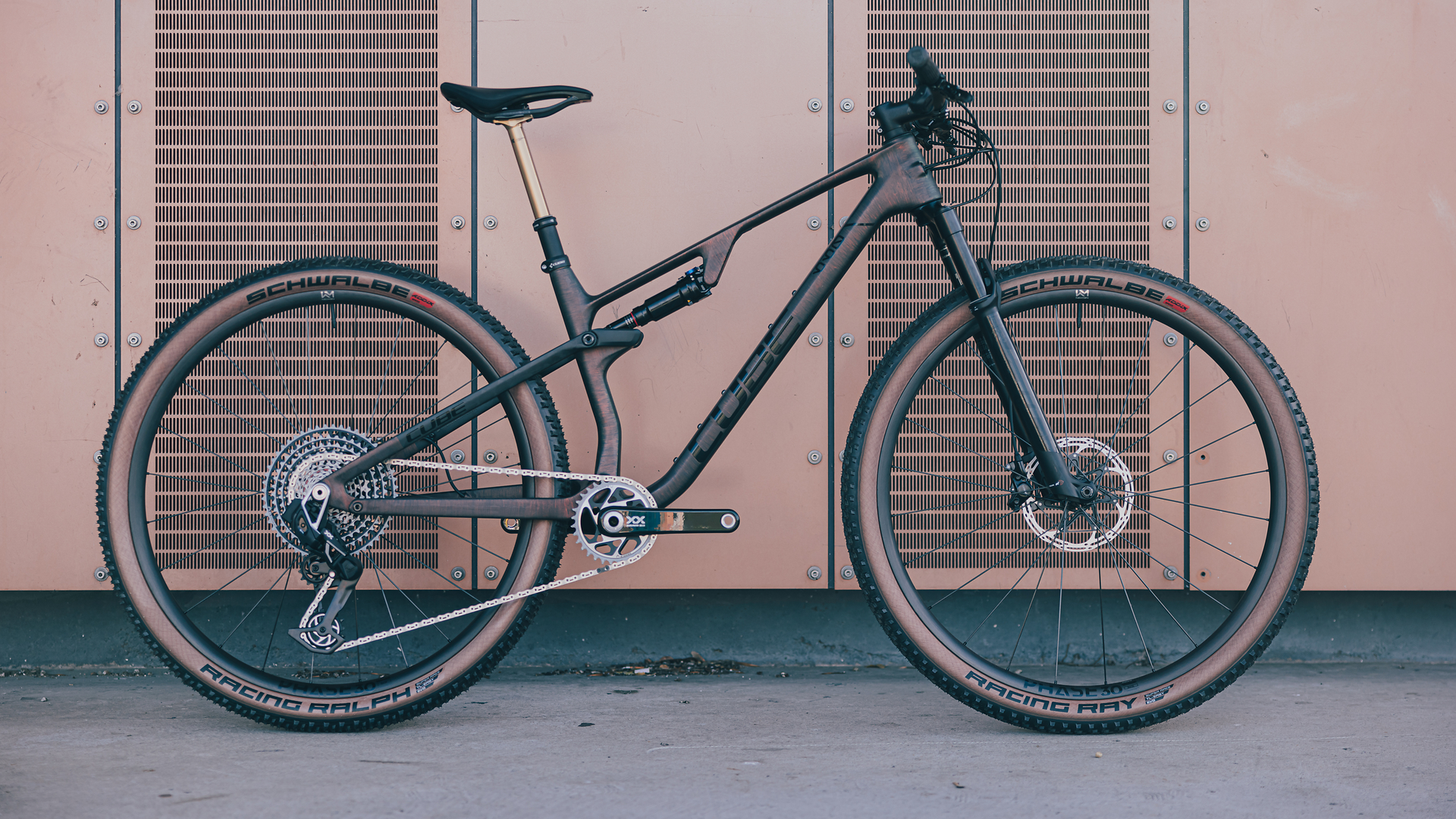

Fast is light, fast is efficient, but above all fast means zero compromise. The AMS ZERO99 C:68X 29's frame is crafted from our premium carbon and weighs in at a stunning 1,600g, approximately. There's plenty of room for 2.4in tyres – and that means more grip and more control, even in the toughest conditions. Based on feedback from our XC and European Champion riders, chainstay length is tuned for optimum climbing whilst retaining excellent manoevrability. Slender tubes help keep the ride comfortable, rather than harsh. There are angle adjustment inserts to allow fine-tuning of the head angle. And with 110mm of travel front and a geometry that's tuned for agility and pace, you've got everything you need to get to the head of the pack.
Frame Material
Frame weight
Tire clearance
More Information
Bike category of use: 3
You can find more information about Bike Classification at the following link.
115
kg
Maximum system weight
The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
| Slack/Moderate | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 | 420 | 470 | 520 |
| Top Tube Horizontal | 573 / 575 | 598 / 600 | 623 / 625 | 648 / 650 |
| Seat angle | 73.3° / 73.1° | 73.4° / 73.2° | 73.4° / 73.2° | 73.4° / 73.2° |
| Head tube angle | 66° / 66.6° | 66.1° / 66.7° | 66.1° / 66.7° | 66.1° / 66.7° |
| Chainstays | 445 | 445 | 445 | 445 |
| Head tube | 100 | 110 | 120 | 135 |
| Wheelbase | 1141 / 1134 | 1167 / 1160 | 1193 / 1186 | 1219 / 1212 |
| BB-Height to Hub | -33 / -31 | -33 / -32 | -33 / -32 | -34 / -32 |
| Protrusion height - 80mm | 766 / 770 | 764 / 768 | 770 / 774 | 765 / 769 |
| Reach | 401 / 400 | 423 / 422 | 445 / 444 | 466 / 465 |
| Stack | 592 / 594 | 601 / 603 | 611 / 613 | 625 / 627 |
Ergonomics
| S | M | L | XL | |
| Stem length | 70 | 80 | 90 | 100 |
| Angle stem | 6° | 6° | 6° | 6° |
| Handlebar width | 740 | 740 | 740 | 740 |
| Crank length | 170 | 175 | 175 | 175 |
| Length seat post | 346 | 411 | 411 | 411 |
| Diameter seatpost | 30.9 | 30.9 | 30.9 | 30.9 |
| Stroke seatpost | 120 | 150 | 150 | 150 |
| Diameter tire maximum | 758 | 758 | 758 | 758 |
| Width tire maximum | 64 | 64 | 64 | 64 |
| Rear suspension travel | 100 | 100 | 100 | 100 |
All values are given in millimetres or degrees.
