RAISE
YOUR GAME

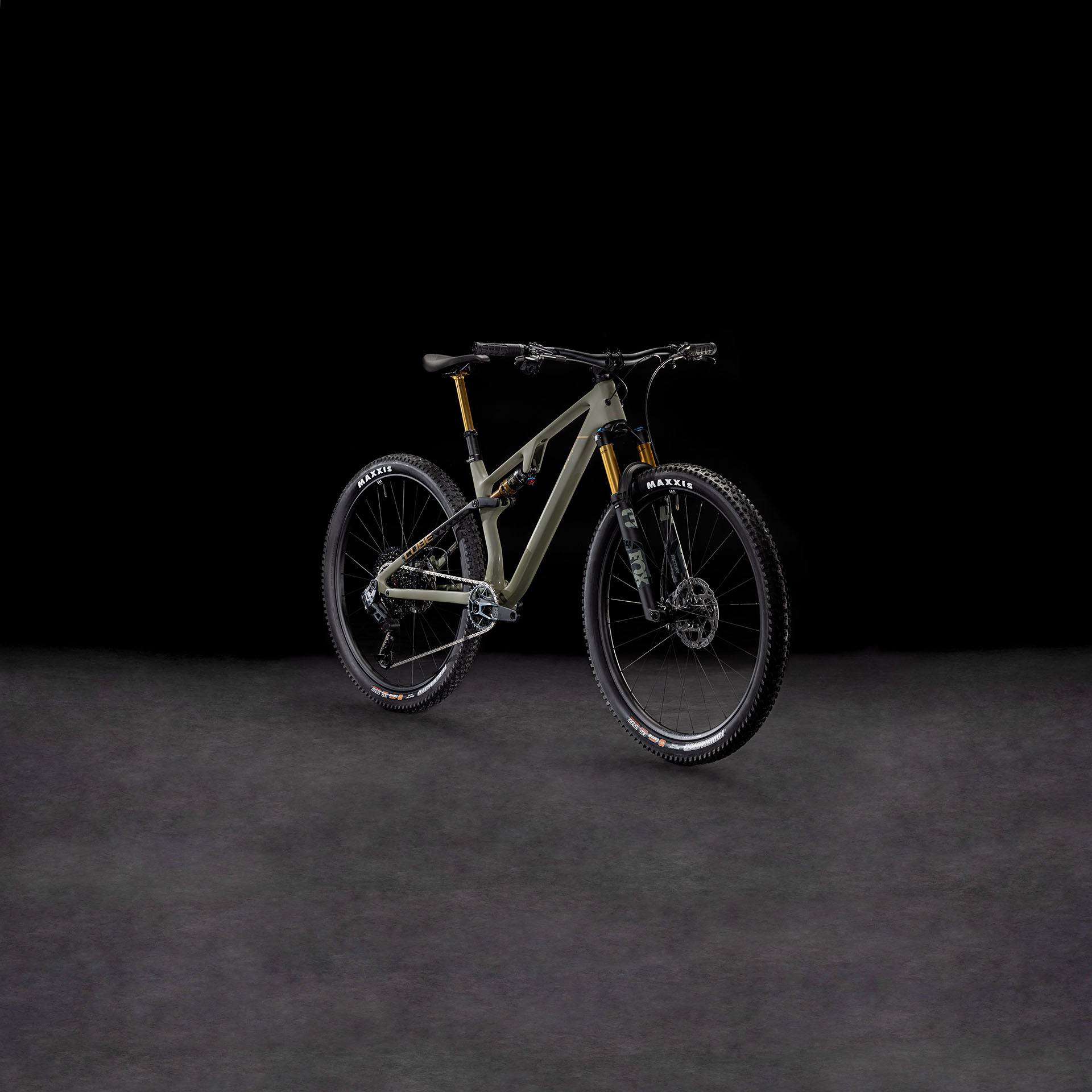

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1,600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there are even Acros angle adjustment inserts to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.
Frame Material
Frame weight
More Information
Bike category of use: 3
You can find more information about Bike Classification at the following link.
115
kg
Maximum system weight
The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
Slack/Moderate | S | M | L | XL |
---|---|---|---|---|
Seat tube | 370 | 420 | 470 | 520 |
Top Tube Horizontal | 573 / 575 | 598 / 600 | 623 / 625 | 648 / 650 |
Seat angle | 73.3° / 73.1° | 73.4° / 73.2° | 73.4° / 73.2° | 73.4° / 73.2° |
Head tube angle | 66° / 66.6° | 66.1° / 66.7° | 66.1° / 66.7° | 66.1° / 66.7° |
Chainstays | 445 | 445 | 445 | 445 |
Head tube | 100 | 110 | 120 | 135 |
Wheelbase | 1141 / 1134 | 1167 / 1160 | 1193 / 1186 | 1219 / 1212 |
BB-Height to Hub | -33 / -31 | -33 / -32 | -33 / -32 | -34 / -32 |
Protrusion height - 80mm | 766 / 770 | 764 / 768 | 770 / 774 | 765 / 769 |
Reach | 401 / 400 | 423 / 422 | 445 / 444 | 466 / 465 |
Stack | 592 / 594 | 601 / 603 | 611 / 613 | 625 / 627 |
Ergonomics
S | M | L | XL | |
Stem length | 50 | 60 | 60 | 70 |
Angle stem | 6° | 6° | 6° | 6° |
Handlebar width | 760 | 760 | 760 | 760 |
Crank length | 170 | 170 | 170 | 175 |
Length seat post | 346 | 411 | 411 | 411 |
Diameter seatpost | 30.9 | 30.9 | 30.9 | 30.9 |
Stroke seatpost | 120 | 150 | 150 | 150 |
Diameter tire maximum | 758 | 758 | 758 | 758 |
Width tire maximum | 64 | 64 | 64 | 64 |
Rear suspension travel | 110 | 110 | 110 | 110 |
All values are given in millimetres or degrees.
