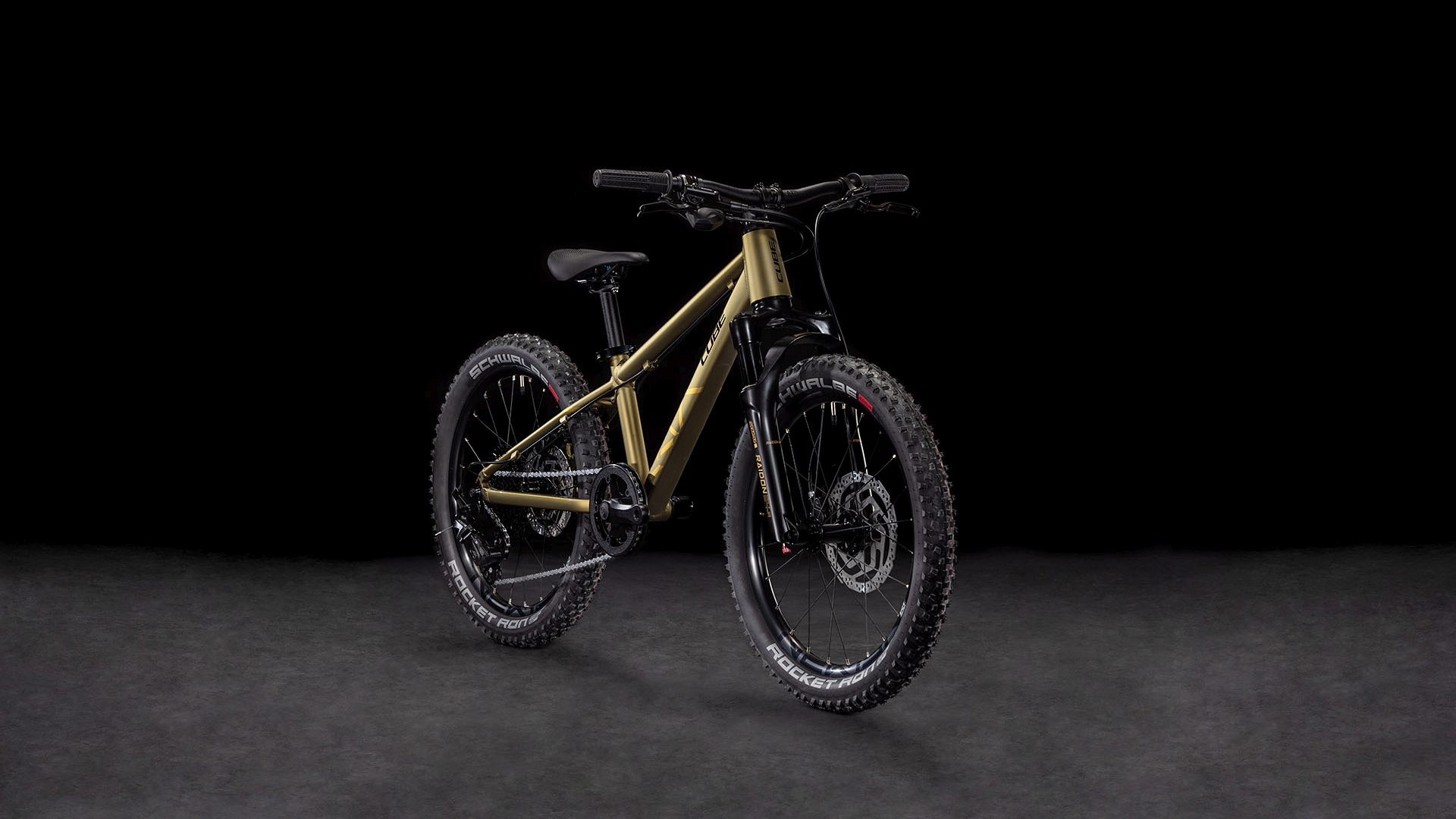

The Reaction 200 TM is made from the same kind of heat-treated 6061 aluminium tubes that you'll find on our performance adult bikes. We also use the same mechanical tube-forming process to adjust tube shapes for the best combination of strength and weight. Making the most of all this frame wizardry is a suspension fork, designed specifically to work with a small frame and a light rider. Disc brake mounts and cable routing allow for the greater safety and stopping power of discs. And a replaceable derailleur hanger insures against expensive repairs in the event of minor mishaps.
Frame Material
Wheels
More Information
Bike category of use: 2Y
You can find more information about Bike Classification at the following link.
40
kg
Maximum system weight
The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
This children's bike is a OneSize model suitable for kids up to the following maximum measurements:
HEIGHT: 111-124
INSEAM: 49-57
Please note this information is only a general recommendation. It cannot replace a personal consultation and test ride with a CUBE dealer.
Geometria
| 20" | |
| Seat tube | 258 |
| Top Tube Horizontal | 438 |
| Seat angle | 73.5° |
| Head tube angle | 72° |
| Chainstays | 374 |
| Head tube | 105 |
| Wheelbase | 854 |
| BB-Height to Hub | 20 |
| Protrusion height - 80mm | 529 |
| Reach | 327 |
| Stack | 417 |
All values are given in millimetres or degrees.
