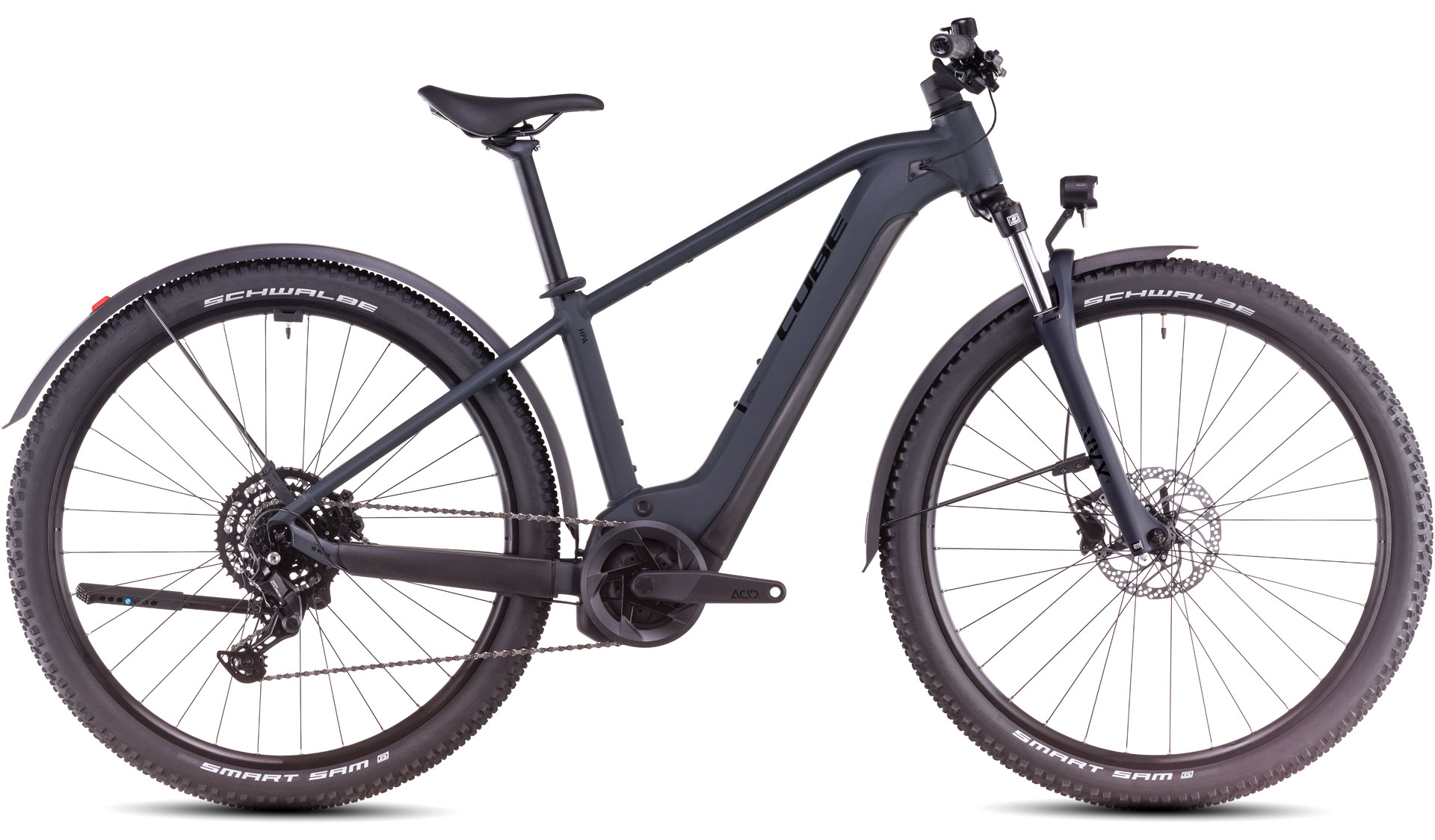

REACTION HYBRID PERFORMANCE
500 ALLROAD

ArtNo. 807200

Comparison

625Wh

YOUR NEW
WAY TO RIDE

The Reaction Hybrid Performance Allroad is built for versatility. Bosch's quiet, powerful Performance Line motor with 75Nm torque is smart system-equipped, and there's a 500Wh battery for miles of pedal assistance. We fitted mudguards, a lighting set and a flat mount kickstand, so you're all set for any journey. There's even mounting points for a lock or multi-tool under the top tube, and the seat clamp incorporates its own tool. Clean lines and internal cable routing look great and help reduce maintenance. And, with Size Split, it's easy to find the perfect fit for you.

Frame Material

Aluminium Superlite

Battery

500 Wh

Sizes

Size Split

Urban jungle or rural backwater, the Reaction Hybrid Performance 500 Allroad has got it covered. From the 500Wh battery to the Bosch Performance Line motor, 100mm suspension fork and full equipment package, it's got everything you need for the weekday commute and weekend adventures alike.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL	XXL
Seat tube	340	370	420	470	515	565
Top Tube Horizontal	555	575	595	615	635	655
Seat angle	73.5°	73.5°	73.5°	73.5°	73.5°	73.5°
Head tube angle	67.5°	68.5°	68.5°	68.5°	68.5°	68.5°
Chainstays	466	466	488	488	488	488
Head tube	110	110	110	120	140	155
Wheelbase	1116	1125	1170	1191	1212	1234
BB-Height to Hub	46	46	55	55	55	55
Protrusion height - 80mm	722	741	802	810	811	848
Reach	377	395	407	425	439	455
Stack	603	608	634	643	662	676

Ergonomics

	XS	S	M	L	XL	XXL
Stem length	50	50	60	60	70	70
Angle stem	12°	12°	12°	12°	12°	12°
Handlebar width	740	740	740	740	740	740
Crank length	175	175	175	175	175	175
Length seat post	350	350	350	400	400	400
Diameter seatpost	30.9	30.9	30.9	30.9	30.9	30.9
Diameter tire maximum	716	716	754	754	754	754
Width tire maximum	60	60	60	60	60	60

All values are given in millimetres or degrees.

1980s cycle couriers adopted the mountain bike for the urban jungle, with good reason – and we've channelled that spirit of versatility into the Reaction Hybrid Performance Allroad, so it's equally at home on a weekday commute or a weekend exploration. Bosch's powerful Performance Line motor – with a 500Wh battery – and easy-shifting Shimano Cues 9-speed gears keep you moving, and powerful Shimano hydraulic disc brakes ensure you can always stop safely, whatever the weather. There's a 100mm suspension fork for tackling city potholes and rooty trails, and a comfy saddle and grips for day-long comfort. Fully equipped with mudguards, integrated lights and a kickstand, it's all set for adventure – anytime, anywhere.
